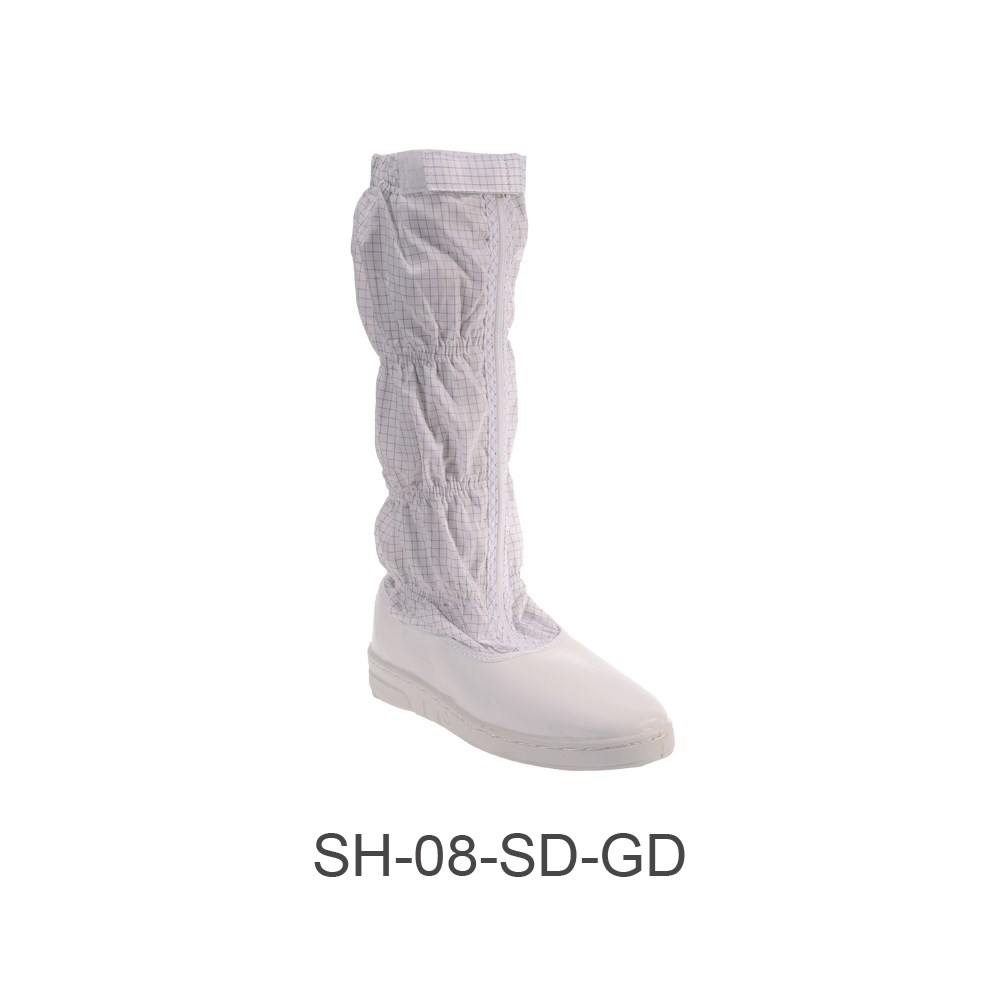

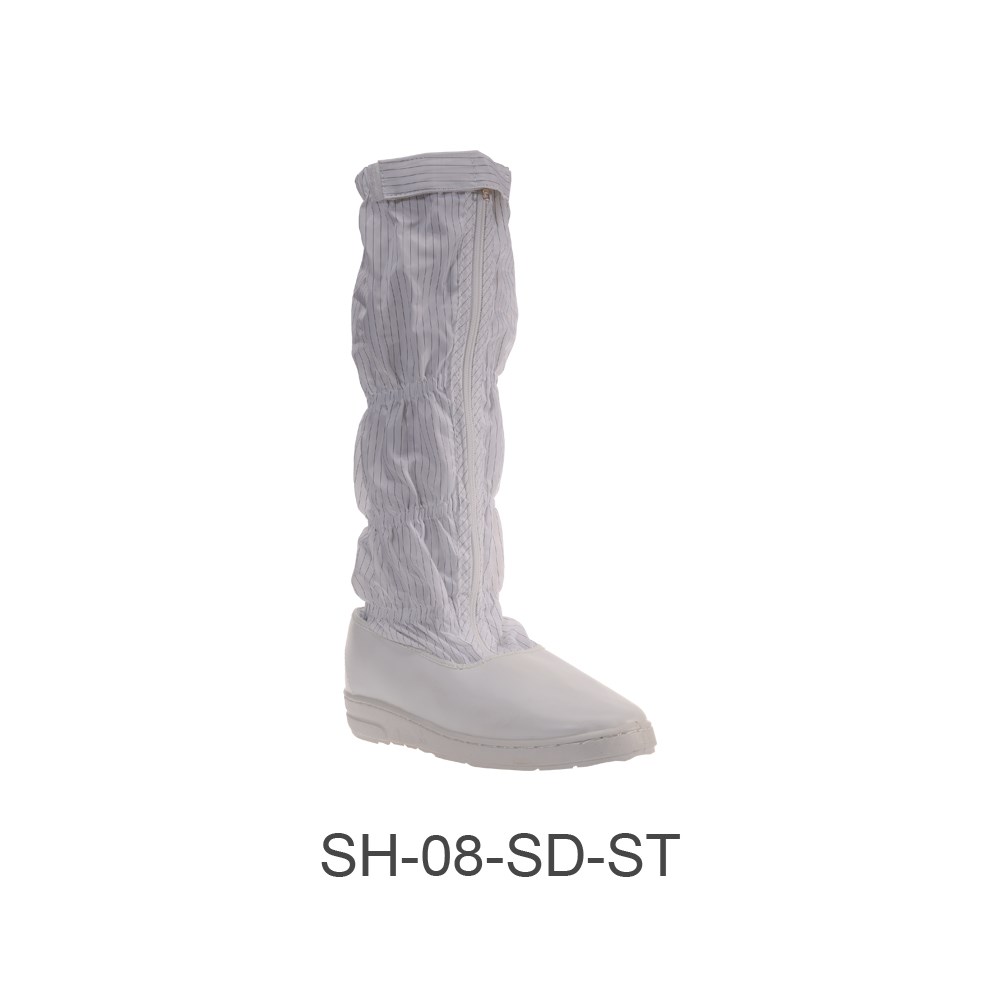

Static Dissipative PVC Booties

Static Dissipative PVC Booties

Product Code: DY6002

These booties have a three-piece construction of upper static dissipative polyester fabric, a PVC top and a unique one piece molded static dissipative PVC sole. This one-piece sole design allows human body static charges to dissipate via the insole to the ESD floor.

Features:

  • Sizes : 220 - 300mm
  • RTG < 35MΩ
  • Single Piece Molded Sole
  • Excellent Electrical Properties
  • Non-Marking, Non-Slip Sole




    Specifications

    Fabric Surface Resistance(-GD, 5mm checked)

    Fabric Surface Resistance(-ST, 5mm parallel)

    105 to 106 Ω 108 to 1010 Ω



    Resistance of Footwear < 1.0 x 109 ohms (Test Method: ANSI/ESD STM9.1)
    Footwear System Resistance < 3.5 x 107 ohms (Test Method: ANSI/ESD STM9.1)
    Electrical System Resistance of a person wearing footwear while standing on conductive flooring < 3.5 x 107 ohms (Test Method: ANSI/ESD STM97.1)
