產品 > CleanSweep® 3A AC Power Line EMI Filter

Features:

OnFILTER CleanSweep® filters utilize proprietary technology to provide maximum noise suppression in actual installations, not just in the controlled laboratory environment.

Easy plug-in installation.
Optimized for power lines.

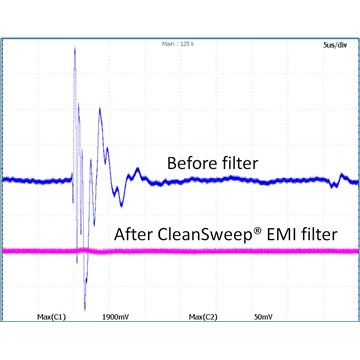

Effective noise suppression for all types of noise.
Models for up to 250V AC 30A.

Specifications:

Parameter	Value
Rated Voltage, RMS	110...250V
Rated Voltage, RMS	3A

Transient Signal Attenuation (Typical)
Differential Mode	24dB
Common Mode	20dB

Leakage Current
Standard Models	<3.5mA
Medical Version	<0.5mA

Power Indicator	LED

Dimensions	3.12”x1.85”x5.0” 80mmx47mmx127mm

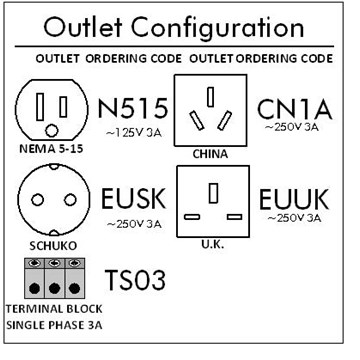

Other CleanSweep® models include filters for up to 30A RMS and 250V AC with a variety of U.S. and international plug and outlet configurations - please contact us for your specific requirements.

please download separate datasheet for more details.
