Conductive Vinyl Tiles

Conductive Vinyl Tiles

Product Code: DY1007

The Flexco ESD Flooring is renowned in various industries for its high quality and durable conductive vinyl tiles. The high standards in manufacturing and strict quality testing enable us to provide lifetime warranty for the electrical properties of the tiles.

Applications:

  • Electronics manufacturing, clean rooms, stores/warehouses, assembly, test and inspection, wafer or fiber optics fabrication
  • Hospital surgeries, intensive care units, radiological facilities
  • Computer/data processing installations, hard disk drive industries, access panels
  • Explosive environments, munitions facilities, chemical processing
  • Pharmaceutical, medical device manufacturing

Specifications

Material Conductive Vinyl
Available Sizes 1ft X 1ft / 2ft X 2ft / 3ft X 3ft
Available Thickness 2mm / 3mm

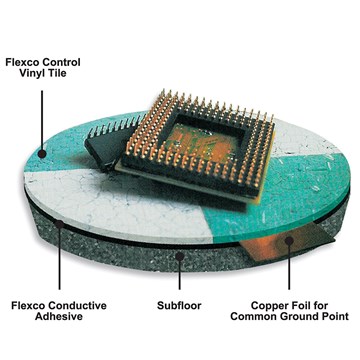

Accessories Conductive 2-part Epoxy Adhesives/ Welding Bead/Copper Grounding Foil
Electrical Resistance 25KΩ to 1MΩ

Remarks: Detail Specifications and ESD Flooring consultation and Certification services available upon request.
