Wafer Frame
Our Wafer Frames are manufactured using the latest state-of-the-art technology. Strict in-process control is maintained throughout the manufacturing stages and there is minimal handling, further ensuring consistency in the quality of our wafer frames.

a - 12" wafer frame
b - 8" wafer frame
c - 6" wafer frame
d - 5" wafer frame

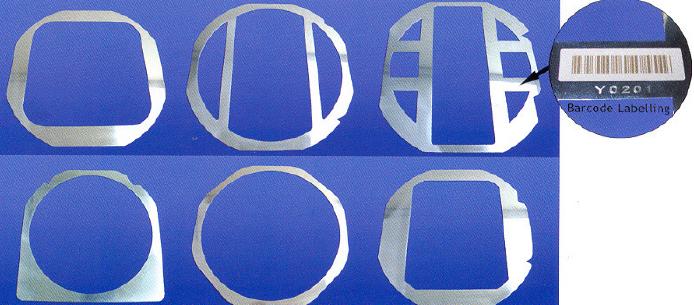

Customize Wafer Frames



We also provide custom designs and manufacturing services specially tailored to your specifications and needs.


Specifications

Industrial Standards Dou Yee Part No   Wafer Size (in)

Frame Square Blocking (mm)

Frame ID (mm)

Frame Thickness (mm)

DISCO


2-12-1  DY-WFR-041  12"  380  350  1.5
2-8-1 DY - WFR - 001 8" 275.2 250 1.2
2-8-1 DY - WFR - 001A 8" 276 250 1.2
2-6-1  DY - WFR - 003 6" 212 194 1.2
K & S
350 - 104 DY - WFR - 007B 8" 266.7 242.4 1.5
350 - 103 DY - WFR - 008 6" 216 192.6 1.2
350 - 102 DY - WFR - 010 5" 184.15 165.1 1.2
TSK DY - WFR - 016 8" 276 255 1.2
