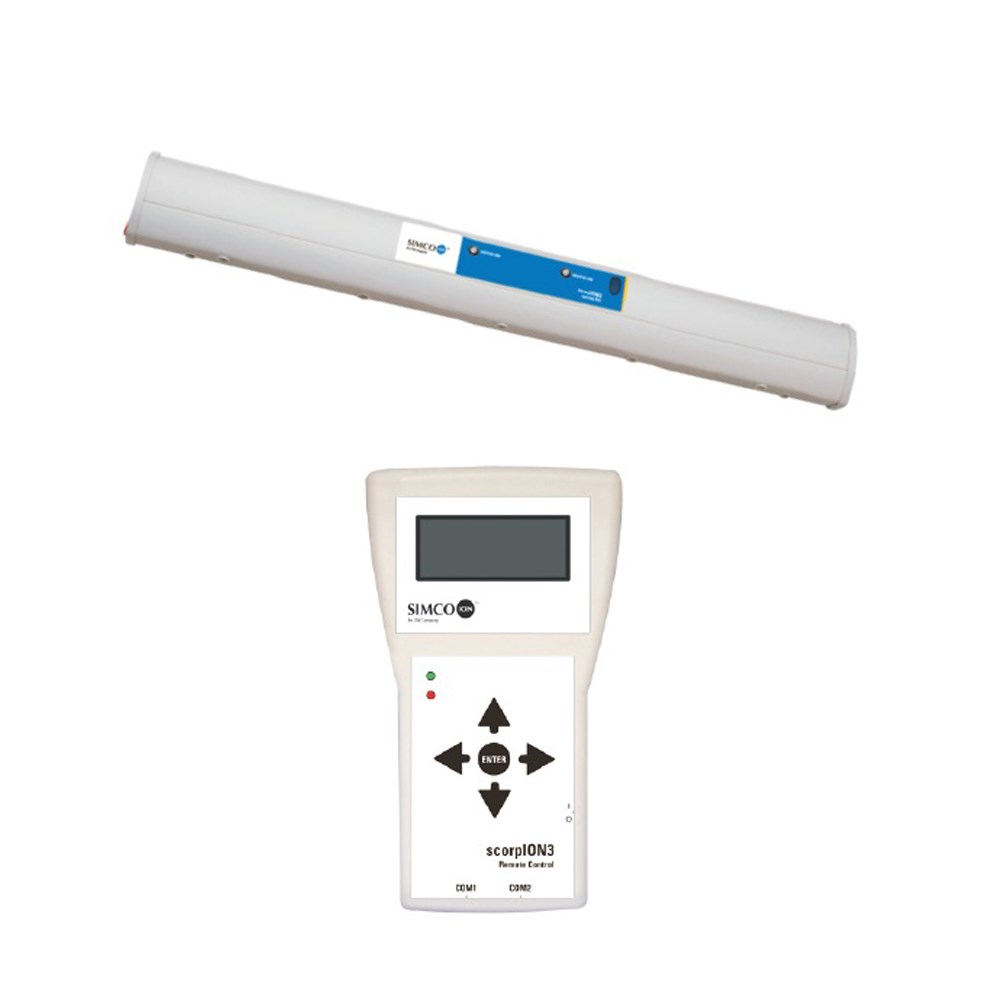

ScorpION3™ Clean Ionizing Bar

Download File Product Enquiry



Specifications:

ScorpION3
 Input Voltage  24 VDC, 0.2 A per bar
 Output Voltage  <15 µA for each polarity
 Frequency  0 - 10 s @ 0.1 s increments
 Emitter  Single crystal silicon or Tungsten, replaceable
 Cleanroom Class  ISO 14644-1 Class 1 (Single Crystal Silicon),
 ISO 14644-1 Class 4 (Tungsten)
 Gas Input  Air assist model available
 EMI Level  <0.02 ppm
 Operating Env.  15 - 35ºC, 20 - 65% RH (non-condensing)
 Enclosure  ABS chassis
 Dimensions  7.5H x 4.8W x Length : 45.7/61/91.4/112/
 163/188/213 cm
 Weight  0.8, 1.0, 1.3, 1.5, 2.0, 2.2, 2.5 kg
 Certifications
